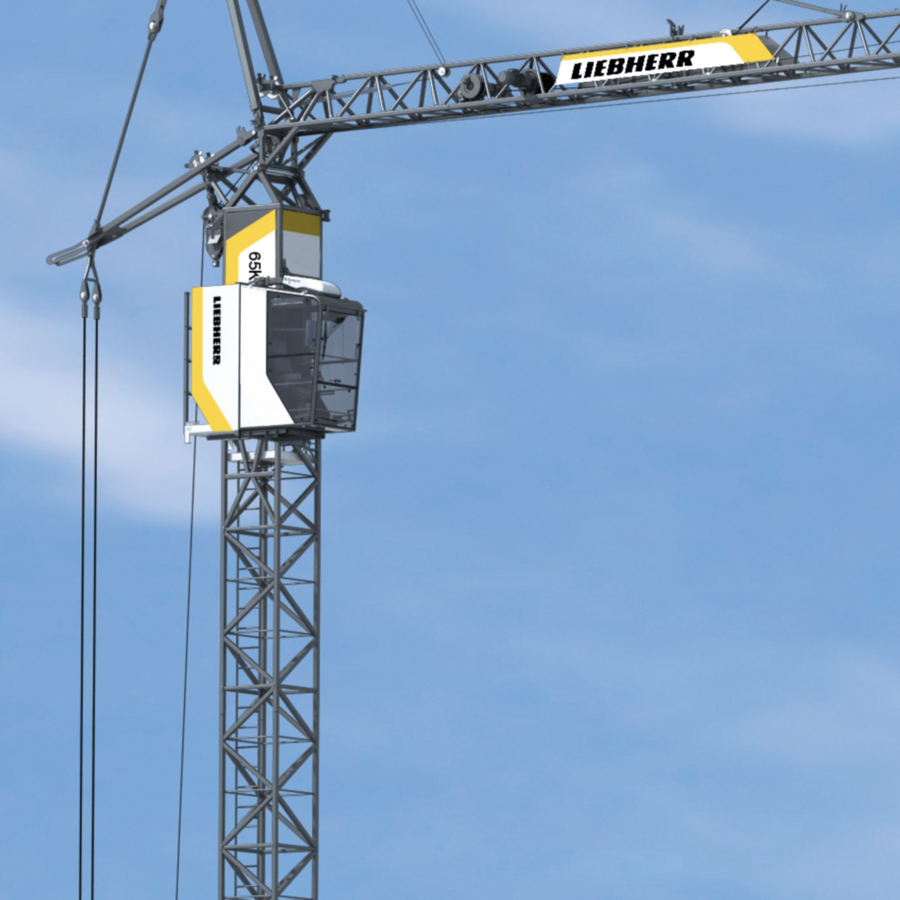

65K.1 Fast-erecting Crane
ENQUIRE FOR PRICE
The K-Series 65 K.1 is a fast-erecting crane that maximizes load handling efficiency with its innovative design and features.
The K-Series 65 K.1 is a fast-erecting crane designed for maximum load handling efficiency on site. It features a 2-line operation system that eliminates re-reeving and time loss, ensuring pure speed in load movement.
Technical data
Technical data
Lifting capacity at max. radius | 1,350 kg
Max. radius | 43.00 m
Standard | EN 14439
Max. lifting capacity | 4,500 kg
Lines | 2
Max. hook height | 34.60 m
Luffed jib position | 30 °
Jib position to avoid obstacles | 45 °
Slewing radius | 2.55 m
Hoist gear | 11 kW FU
Slewing gear | 4,0 kW FU
Trolley travel gear | 3,0 kW FU
Max. radius | 43.00 m
Standard | EN 14439
Max. lifting capacity | 4,500 kg
Lines | 2
Max. hook height | 34.60 m
Luffed jib position | 30 °
Jib position to avoid obstacles | 45 °
Slewing radius | 2.55 m
Hoist gear | 11 kW FU
Slewing gear | 4,0 kW FU
Trolley travel gear | 3,0 kW FU
Availability
