HC-L280 HC-L 12/24 Litronic Luffing Crane
ENQUIRE FOR PRICE

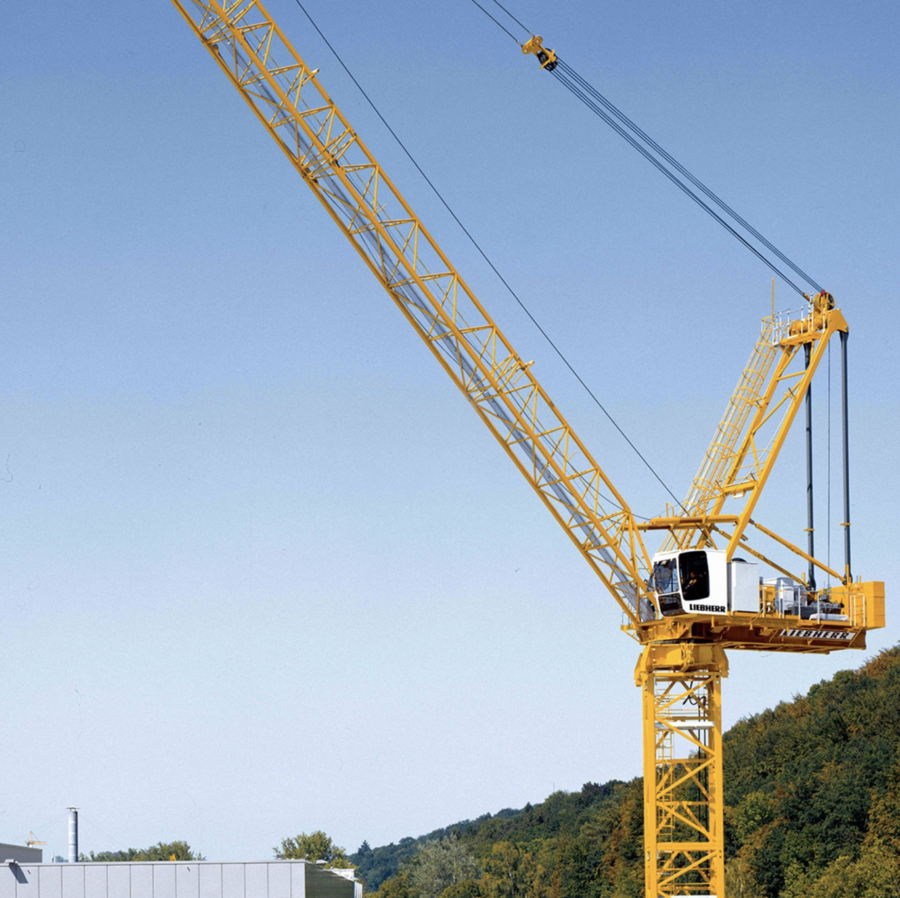

The HC-L280 HC-L 12/24 Litronic is a luffing jib crane ideal for high buildings and tight spaces, featuring automatic load hook movement.
Luffing jib cranes are designed for working on particularly high buildings or in particularly small spaces. HC-L cranes allow level luffing. When moving the load, the controller automatically adjusts the hoist gear so that the load hook is moved horizontally.
Technical data
Technical data
Lifting capacity at max. radius | 3,200 kg
Max. radius | 60.00 m
Standard | EN 14439
Lines | 1/2
Max. lifting capacity | 24,000 kg
Max. hook height | 59.10 m
Hoist gear | 110 kW FU
Slewing gear | 2 x 7,5 kW FU
Max. radius | 60.00 m
Standard | EN 14439
Lines | 1/2
Max. lifting capacity | 24,000 kg
Max. hook height | 59.10 m
Hoist gear | 110 kW FU
Slewing gear | 2 x 7,5 kW FU
