205 EC-B 10
ENQUIRE FOR PRICE

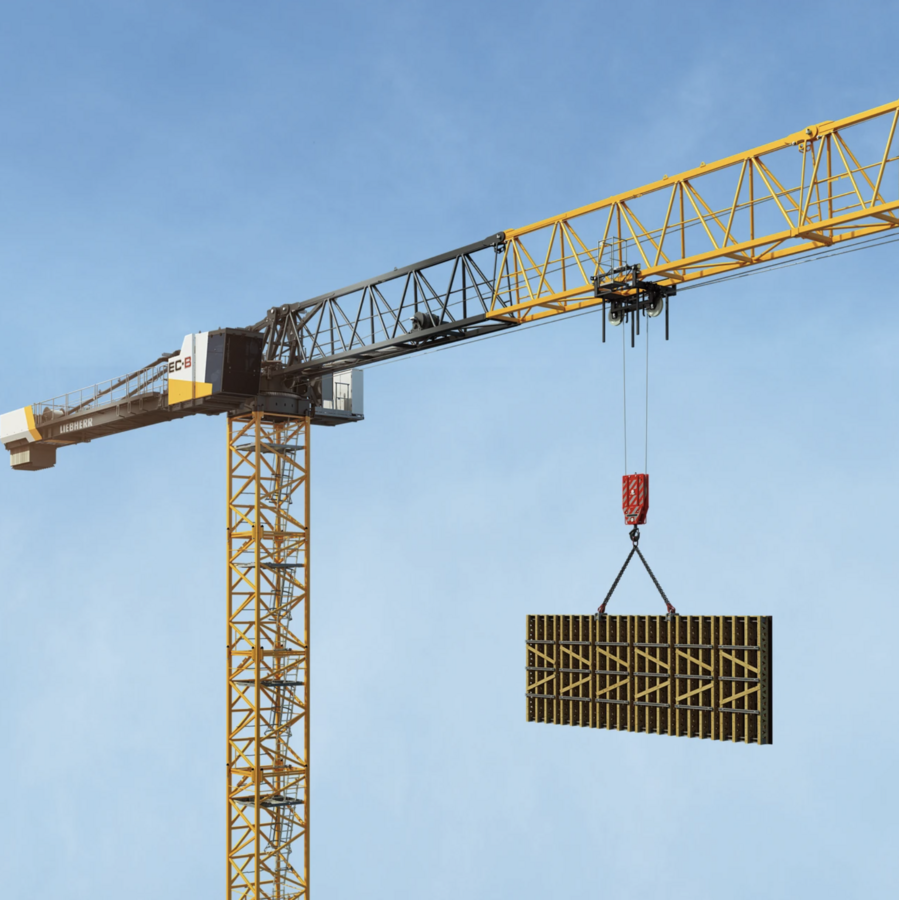

The Flat-Top EC-B205 crane features a compact design with high lifting capacity and maximum hook height.
On these EC-B cranes the compact head includes the slewing gear, the central switchgear and the complete slewing ring support.
Technical data
Technical data
Lifting capacity at max. radius | 2,100 kg
Max. radius | 65.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 10,000 kg
Max. hook height | 68.20 m
Hoist gear | 45 kW FU
Slewing gear | 2 x 7,5 kW FU
Trolley travel gear | 7,5 kW FU
Max. radius | 65.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 10,000 kg
Max. hook height | 68.20 m
Hoist gear | 45 kW FU
Slewing gear | 2 x 7,5 kW FU
Trolley travel gear | 7,5 kW FU
