Physical
125 EC-B 6
ENQUIRE FOR PRICE

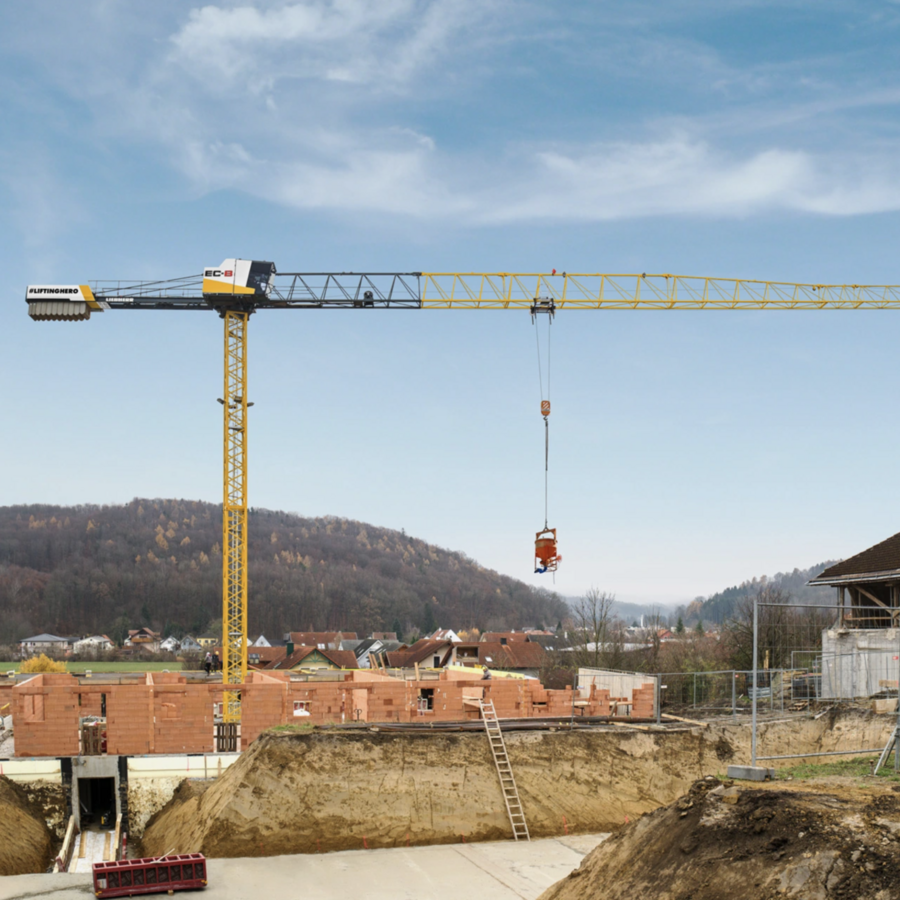

The Flat-Top EC-B125 EC-B 6125 EC-B 6 is a top-slewing crane designed for high lifting capacities and maximum reach. It features a compact head design for efficient operation.
On these EC-B cranes the compact head includes the hoist gear, the slewing gear, the central switchgear and the complete slewing ring support.
Technical data
Technical data
Lifting capacity at max. radius | 1,600 kg
Max. radius | 58.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 6,000 kg
Max. hook height | 59.00 m
Hoist gear | 18 kW FU / 30 kW FU
Slewing gear | 7,5 kW FU
Trolley travel gear | 5,5 kW FU
Max. radius | 58.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 6,000 kg
Max. hook height | 59.00 m
Hoist gear | 18 kW FU / 30 kW FU
Slewing gear | 7,5 kW FU
Trolley travel gear | 5,5 kW FU
Availability
AvailableTags
#crane
#construction
#lifting equipment
