150 EC-B 8 Litronic
ENQUIRE FOR PRICE

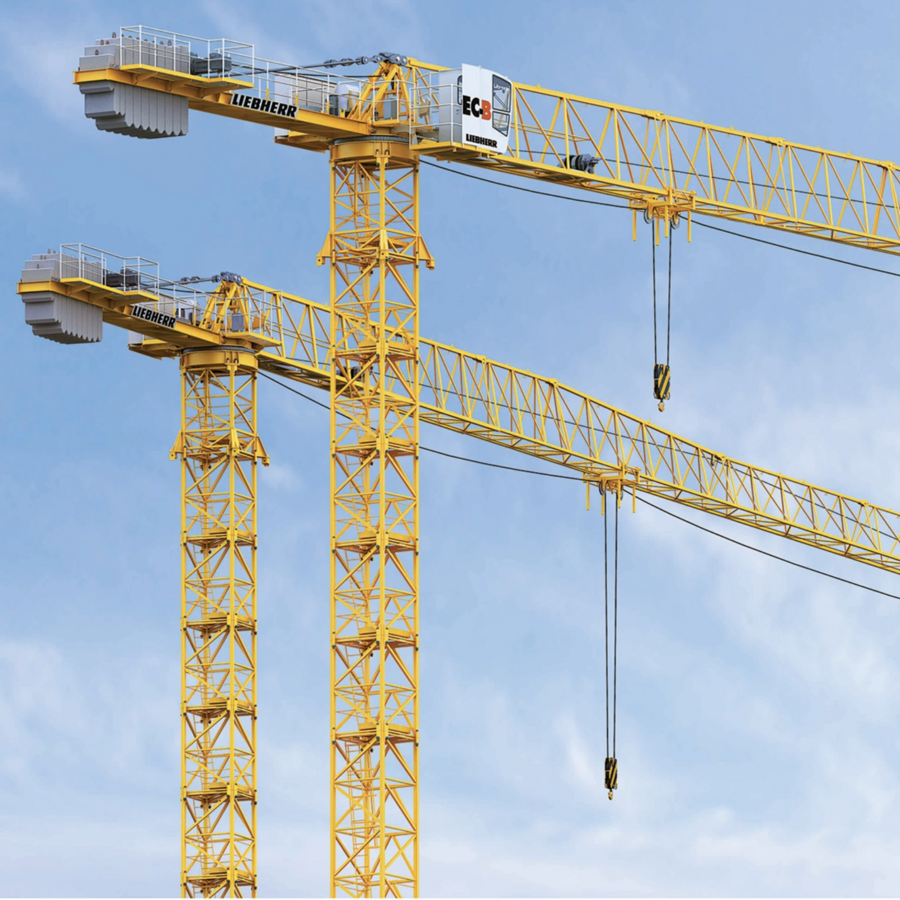

The Flat-Top EC-B 150 EC-B 8 Litronic is a top-slewing crane designed for high lifting capacities and maximum hook height. It features advanced engineering for efficient operation.
On these EC-B cranes the compact head includes the slewing gear, the central switchgear and the complete slewing ring support.
Technical data
Technical data
Lifting capacity at max. radius | 1,400 kg
Max. radius | 62.50 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 8,000 kg
Max. hook height | 67.50 m
Hoist gear | 24 kW FU / 45 kW FU
Slewing gear | 7,5 kW FU
Trolley travel gear | 5,5 kW FU
Max. radius | 62.50 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 8,000 kg
Max. hook height | 67.50 m
Hoist gear | 24 kW FU / 45 kW FU
Slewing gear | 7,5 kW FU
Trolley travel gear | 5,5 kW FU
