270 EC-B 12 Tower Crane
ENQUIRE FOR PRICE

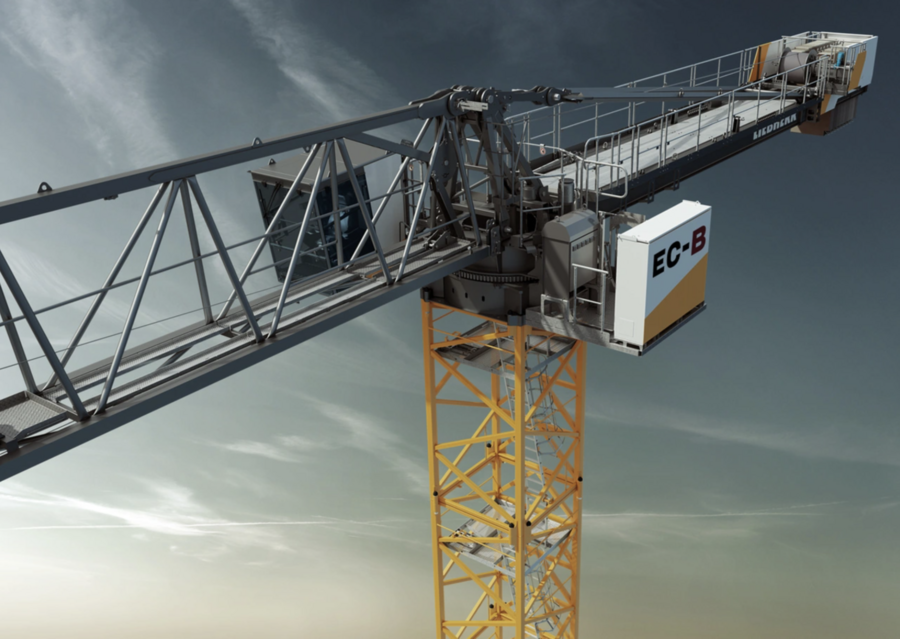

The EC-B 12 Tower Crane features a compact design with a maximum lifting capacity of 12,000 kg and a hook height of 91.70 m.
On these EC-B cranes the compact head includes the slewing gear, the central switchgear and the complete slewing ring support.
Technical data
Technical data
Lifting capacity at max. radius | 2,150 kg
Max. radius | 73.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 12,000 kg
Max. hook height | 91.70 m
Hoist gear | 110 kW FU SD.shift / 45 kW FU / 65 kW FU
Slewing gear | 2 x 7,5 kW FU
Trolley travel gear | 7,5 kW FU
Max. radius | 73.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 12,000 kg
Max. hook height | 91.70 m
Hoist gear | 110 kW FU SD.shift / 45 kW FU / 65 kW FU
Slewing gear | 2 x 7,5 kW FU
Trolley travel gear | 7,5 kW FU
