91K Fast-erecting Crane
ENQUIRE FOR PRICE

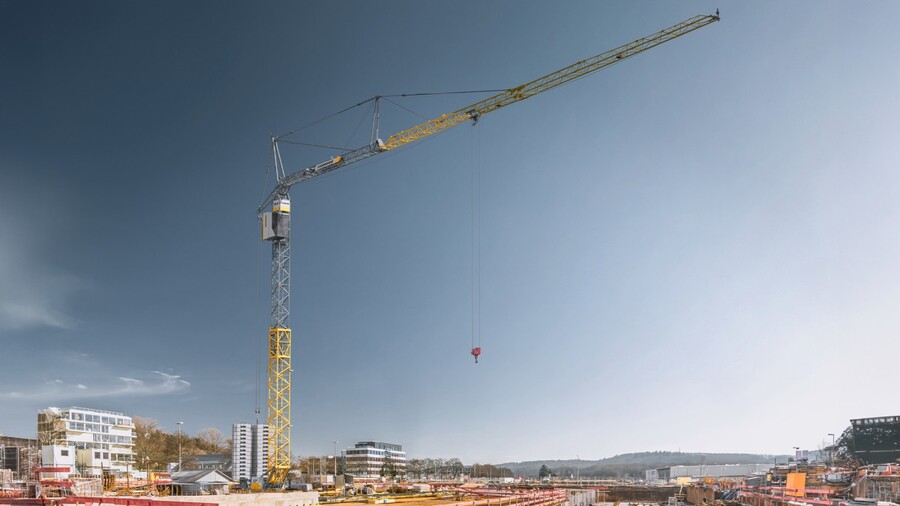

The 91 K Fast-erecting Crane offers advanced features and improved lifting capacities, making it suitable for various construction tasks.
A crane for every situation – the solution for every job: The 91 K is optionally available with the new assistance systems. The new Liebherr Control 5 control system is also installed in the 91 K. Established functions such as Speed2Lift, Load-Plus and Micromove continue to be part of its extensive features. Improved lifting capacities result in increased crane performance.
Technical data
Technical data
Lifting capacity at max. radius | 1,380 kg
Max. radius | 48.00 m
Standard | EN 14439
Max. lifting capacity | 6,000 kg
Lines | 2
Max. hook height | 40.40 m
Luffed jib position | 30 °
Jib position to avoid obstacles | 45 °
Slewing radius | 2.75 m
Hoist gear | 15 kW FU
Slewing gear | 5,0 kW FU
Trolley travel gear | 3,0 kW FU
Max. radius | 48.00 m
Standard | EN 14439
Max. lifting capacity | 6,000 kg
Lines | 2
Max. hook height | 40.40 m
Luffed jib position | 30 °
Jib position to avoid obstacles | 45 °
Slewing radius | 2.75 m
Hoist gear | 15 kW FU
Slewing gear | 5,0 kW FU
Trolley travel gear | 3,0 kW FU
Availability
