630 EC-H 40 Litronic
ENQUIRE FOR PRICE

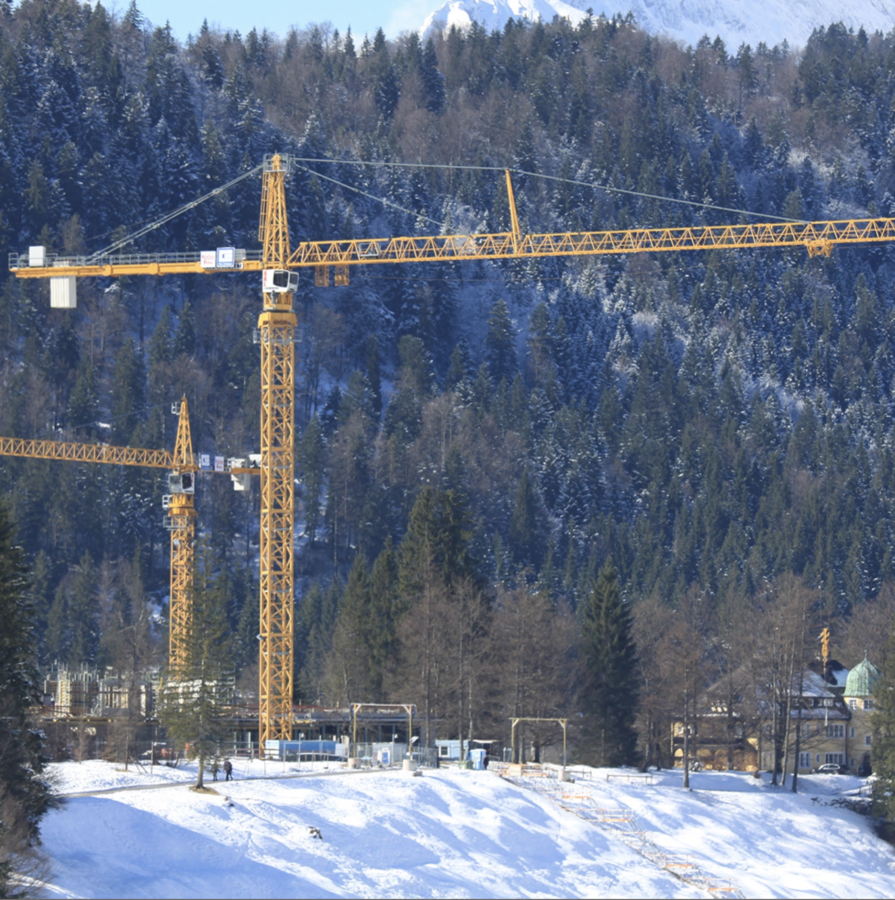

The High-Top EC-H 630 EC-H 40 Litronic is designed for medium to large construction projects, offering high lifting capacities and versatility.
High-Top EC-H cranes are ideal for medium-sized and large construction projects, for example in industry and plant construction. High-Top cranes are the best choice for handling high lifting capacities.
Technical data
Technical data
Lifting capacity at max. radius | 5,800 kg
Max. radius | 80.00 m
Standard | EN 14439
Lines | 2/4
Max. lifting capacity | 40,000 kg
Max. hook height | 80.00 m
Hoist gear | 110 kW FU / 110 kW FU SD.shift / 65 kW FU SD.shift
Slewing gear | 2 x 11 kW FU
Trolley travel gear | 11,0 kW FU
Max. radius | 80.00 m
Standard | EN 14439
Lines | 2/4
Max. lifting capacity | 40,000 kg
Max. hook height | 80.00 m
Hoist gear | 110 kW FU / 110 kW FU SD.shift / 65 kW FU SD.shift
Slewing gear | 2 x 11 kW FU
Trolley travel gear | 11,0 kW FU
