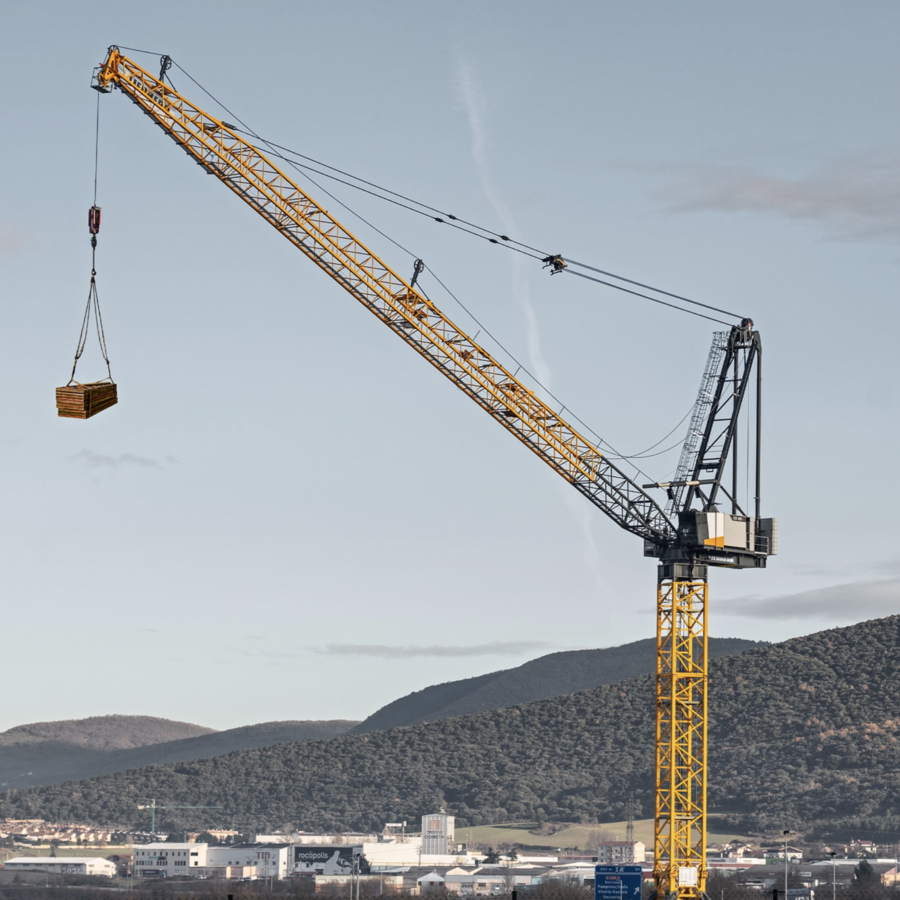

620 HC-L 18/36

The 620 HC-L features increased lifting capacity and reduced space requirements. With a maximum lifting capacity of up to 36 tonnes in two-fall operation and a jib length of 65 metres, the 620 HC-L sets new standards in its class. Thanks to its Load-Plus function, lifting capacity can be increased by up to 76 per cent for specific load charts, which significantly expands the crane’s range of uses. A stand-out highlight of the 620 HC-L is its modern TC-OS control unit, which makes crane operation intuitive and convenient.

Technical data

Lifting capacity at max. radius | 7,550 kg
Max. radius | 65.00 m
Standard | EN 14439
Lines | 1/2
Max. lifting capacity | 36,000 kg
Max. hook height | 74.30 m
Hoist gear | 110 kW FU / 160 kW FU
Slewing gear | 2 x 11 kW FU
