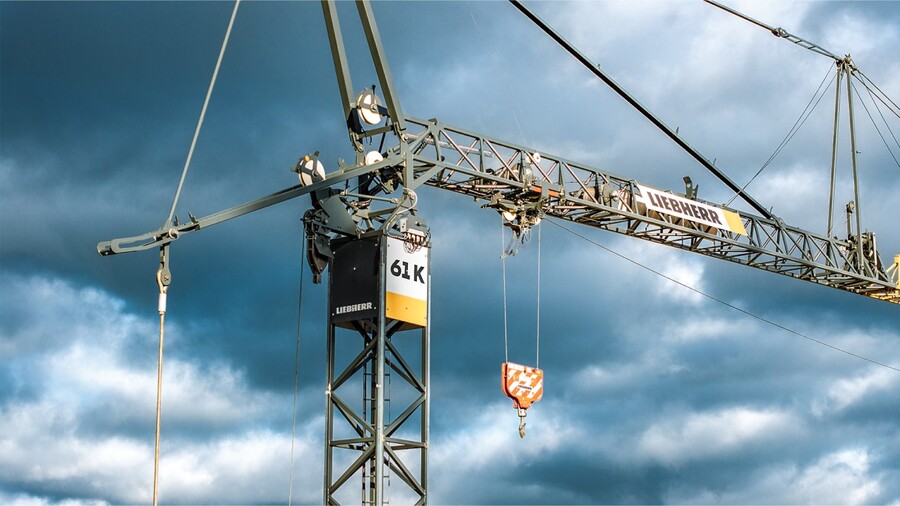

61K Fast-erecting Crane

Efficient and economical – for maximum performance: The 61 K offers three metres more radius, a higher maximum hook height of 2.4 metres and with Load-Plus up to 200 kilograms more jib head lifting capacity. Another new feature is a luffed position of up to 30°. The 61 K is optionally available with the new intelligent assistance systems. Like its little brother, the 61 K is also equipped with Speed2Lift, the new Liebherr Control 5 control system and a radio control with display. Electronic slew safety area limitation is available as an option.

Technical data

Lifting capacity at max. radius | 1,100 kg
Max. radius | 43.00 m
Standard | EN 14439
Max. lifting capacity | 4,000 kg
Lines | 2
Max. hook height | 33.40 m
Luffed jib position | 30 °
Jib position to avoid obstacles | 45 °
Slewing radius | 2.50 m
Hoist gear | 12,2 kW FU
Slewing gear | 3,0 kW FU
Trolley travel gear | 3,0 kW FU
