300 EC-B 12 Fibre
ENQUIRE FOR PRICE

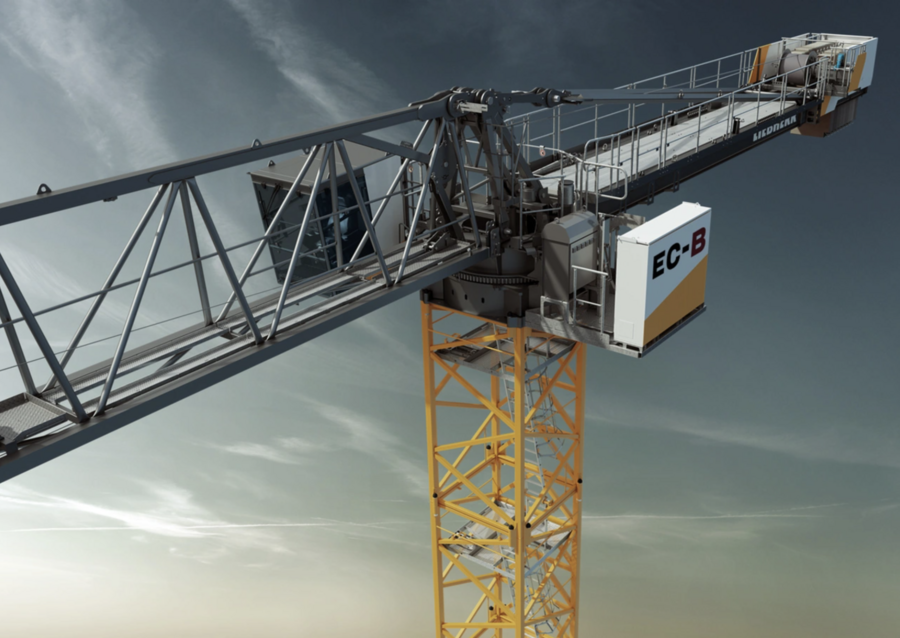

The EC-B 12 Fibre crane offers enhanced lifting capabilities with a longer service life due to its fibre rope technology.
Particular highlights of the new EC-B series are the Fibre cranes. As well as the fibre cranes offering up to 20 percent more jib head load capacity when compared to cranes using steel rope, fibre rope also has a four times longer service life than steel rope.
Technical data
Technical data
Lifting capacity at max. radius | 2,550 kg
Max. radius | 73.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 12,000 kg
Max. hook height | 91.70 m
Hoist gear | 110 kW FU SD.shift / 45 kW FU / 65 kW FU
Slewing gear | 2 x 7,5 kW FU
Trolley travel gear | 7,5 kW FU
Max. radius | 73.00 m
Standard | EN 14439
Lines | 2
Max. lifting capacity | 12,000 kg
Max. hook height | 91.70 m
Hoist gear | 110 kW FU SD.shift / 45 kW FU / 65 kW FU
Slewing gear | 2 x 7,5 kW FU
Trolley travel gear | 7,5 kW FU
Availability
